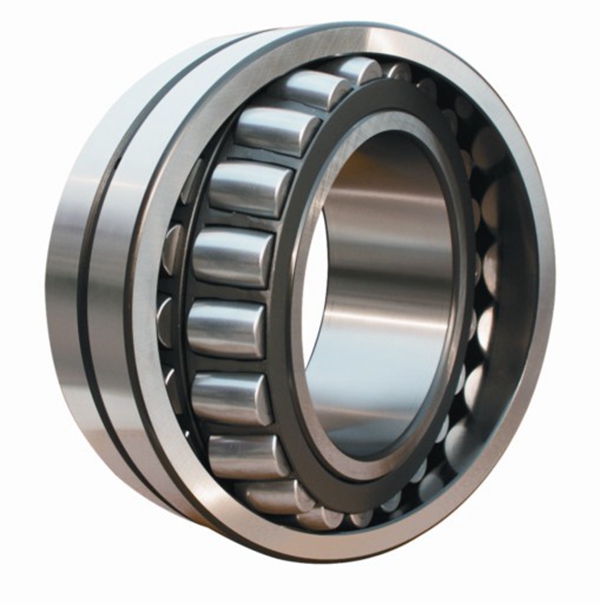

Self-aligning Industrial Roller Bearings 22212CA 22212CAK For Sprots Equipment
Description:
1. High precision
2. Low noise
3. Less vibration
4. Be customized
5. Long service life
Applications:
1. Electric motor
2. Food machine
3. Medical Equipment
4. Other metallurgical machinery
Competitive Advantage:
· More than 10 years of production experience
· China Leading bearing Technology
· Super High Quality
· Competitive Price
· Big Production Ability
· Fast Delivery
· Excellent Sale and After-sale Service
· OEM Available
Specifications
China Self-aligning Spherical Roller Bearing 22212 CA
1.Long use life
2.OEM service
3.Samples are available
4.High quality
Double Row Self-aligning Spherical Roller Bearings 22212 CA 22212CAK Made in China
1.SPECIFICATION OF SELF-ALIGNING ROLLER BEARING 22212 CA
| Designation: 22212 CA.W33 ¹ |
| Type: Radial spherical roller bearings. Multi row. Complete. (60X110X28). |
| Main dimensions: |
| d mm | D mm | B mm | speed ratings-Grease(r/min)Cr | speed ratings-Oil(r/min)Cor | Dynamic Load Ratings(KN) | Static Load Ratings(KN) | Mass kg | | 60.000 | 110.000 | 28.000 | 3800 | 5200 | 123 | 154 | 1.152 | |
2.PRODUCT DESCRIPTION

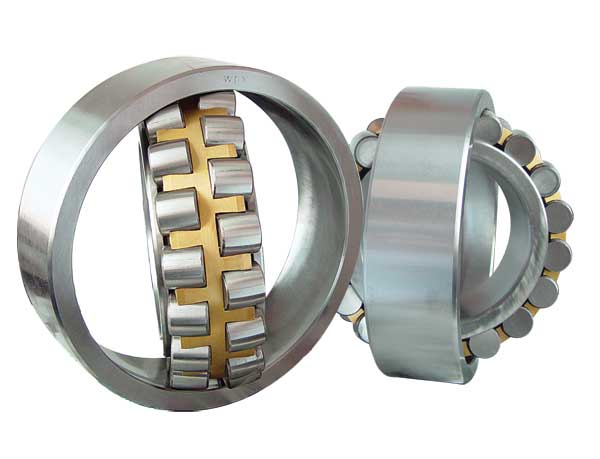

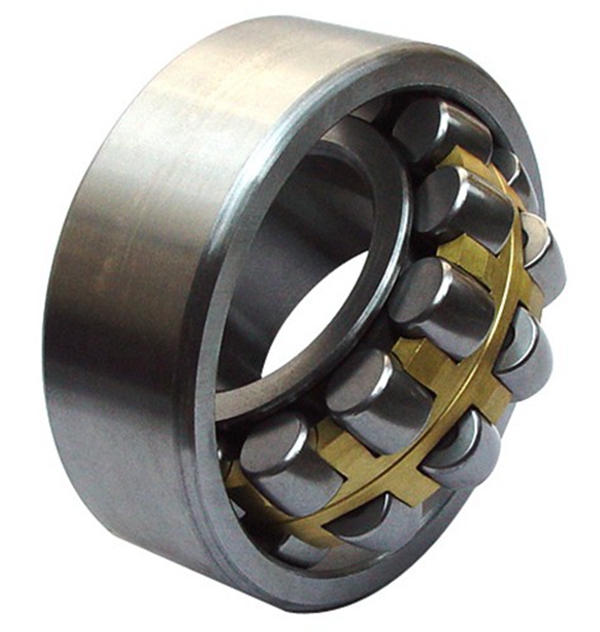

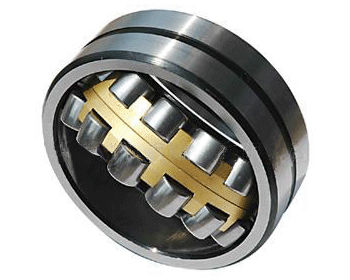

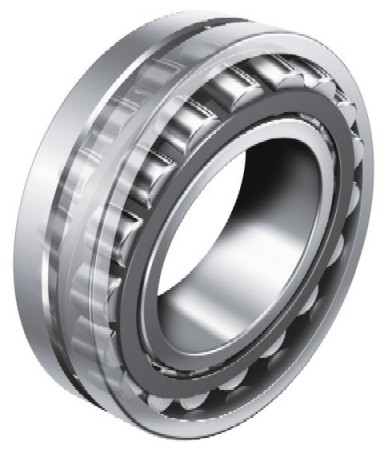

Spherical roller bearing has two rows of spherical rollers, the outer race is provided with a common concave spherical raceway, while the inner race is provided with two concave spherical raceways that form an angle with the bearing axis. The curvature center of the outer raceway is consistent with the bearing center.
The spherical roller bearing is self-adjusted, and it is not affected by non-centering or shaft deformation flexure of shaft and bearing block, so it can compensate the concentricity error caused by these reasons. Except being subject to radial load, this type of bearing can also be subject to bidirectional axial load and their combination load. The load capacity is large, and the bearing is provided with preferable shock resistant capacity.
Spherical roller bearings are mainly applied on mechanical equipments of steel, mine, paper making, shipping, textile machinery, coal mill and electric power industries. It is one of the bearings most widely used in mechanical industry.
3. 22000 23000 SELF-ALIGNING ROLLER BEARINGS SERIES - 22212 CA
| specification | dimensions(mm) | specification | dimensions(mm) |
| 22205 | 25*52*18 | 23064 | 320*480*121 |
| 22206 | 30*62*20 | 23068 | 340*520*133 |
| 22207 | 35*72*23 | 23072 | 360*540*134 |
| 22208 | 40*80*23 | 23076 | 380*560*135 |
| 22209 | 45*85*23 | 23080 | 400*600*148 |
| 22210 | 50*90*23 | 23084 | 420*620*150 |
| 22211 | 55*100*25 | 23088 | 440*650*157 |
| 22212 | 60*110*28 | 23092 | 460*680*163 |
| 22213 | 65*120*31 | 23096 | 480*700*165 |
| 22214 | 70*125*31 | 230/500 | 500*720*167 |
| 22215 | 75*130*31 | 230/530 | 530*780*185 |
| 22216 | 80*140*33 | 230/560 | 560*780*195 |
| 22217 | 85*160*36 | 230/600 | 600*870*200 |
| 22218 | 90*160*40 | 230/630 | 630*920*212 |
| 22219 | 95*170*43 | 230/670 | 670*980*230 |
| 22220 | 100*180*46 | 240/850 | 850*1220*365 |
| 22222 | 110*200*53 | 240/900 | 900*1280*375 |
| 22224 | 120*215*58 | 23121 | 105*175*56 |
| 22226 | 130*230*64 | 23122 | 110*180*56 |
| 22228 | 140*250*68 | 23124 | 120*200*62 |
| 22230 | 150*270*73 | 23126 | 130*210*80 |
| 22232 | 160*260*80 | 23128 | 140*225*85 |
| 22234 | 170*310*86 | 23130 | 150*250*80 |
| 22236 | 180*320*86 | 23132 | 160*270*86 |
| 22238 | 190*320*92 | 23134 | 170*280*88 |
| 22240 | 200*360*98 | 23136 | 180*300*96 |
| 22244 | 220*400*108 | 23138 | 190*320*104 |
| 22248 | 240*440*120 | 23140 | 200*340*112 |
| 22252 | 260*480*130 | 23144 | 220*370*120 |
| 22256 | 280*500*130 | 23148 | 240*400*128 |
| 22260 | 300*540*140 | 23152 | 260*440*144 |
| 22308 | 40*90*33 | 23156 | 280*460*146 |
| 22309 | 45*90*33 | 23160 | 300*500*160 |
| 22310 | 50*110*40 | 23164 | 320*540*176 |
| 22311 | 55*120*43 | 23168 | 340*580*190 |
| 22312 | 60*130*46 | 23172 | 360*600*192 |
| 22313 | 65*140*48 | 23176 | 380*620*194 |
| 22314 | 70*150*51 | 23180 | 400*650*200 |
| 22315 | 75*160*55 | 23184 | 420*700*224 |
| 22316 | 80*170*58 | 23188 | 440*720*226 |
| 22317 | 85*180*60 | 23192 | 460*760*240 |
| 22318 | 90*190*64 | 23196 | 480*790*248 |
| 22319 | 95*200*67 | 23218 | 90*160*52.4 |
| 22320 | 100*215*73 | 23220 | 100*180*60.3 |
| 22322 | 110*240*80 | 23222 | 100*180*60.3 |
| 22324 | 120*246*80 | 23224 | 120*200*69.8 |
| 22326 | 130*280*93 | 23226 | 120*230*80 |
| 22328 | 140*300*102 | 23228 | 140*250*88 |
| 22330 | 150*320*108 | 23230 | 150*270*96 |
| 22332 | 1608340*114 | 23232 | 160*290*104 |
| 22334 | 170*360*120 | 23234 | 180*310*110 |
| 22336 | 180*380*126 | 23236 | 180*320*112 |
| 22338 | 190*400*132 | 23238 | 190*340*120 |
| 22340 | 200*420*138 | 23240 | 200*360*128 |
| 22344 | 220*4608145 | 23244 | 200*400*144 |
| 22348 | 240*500*155 | 23248 | 240*440*160 |
| 22352 | 260*540*165 | 23252 | 260*480*174 |
| 22356 | 280*580*175 | 23256 | 280*500*176 |
| 22372 | 360*750*244 | 23260 | 300*540*192 |
| 22380 | 400*820*243 | 23264 | 320*580*208 |
| 23022 | 110*170*75 | 23280 | 400*720*256 |
| 23024 | 120*180*46 | 23284 | 420*760*272 |
| 23026 | 130*200*52 | 23296 | 480*870*310 |
| 23028 | 140*210*53 | 23936 | 180*250*52 |
| 23030 | 150*225*56 | 23940 | 200*280*60 |
| 23032 | 160*240*60 | 23948 | 240*320*60 |
| 23034 | 170*260*67 | 23960 | 300*420*90 |
| 23036 | 180*280*74 | 23972 | 360*480*90 |
| 23038 | 190*290*75 | 23976 | 380*580*106 |
| 23040 | 200*310*82 | 23996 | 480*650*128 |
| 23044 | 230*340*90 | 239/500 | 500*670*128 |
| 23048 | 240*360*92 | 239/670 | 670*900*170 |
| 23052 | 260*400*104 | 239/710 | 710*950*180 |
| 23056 | 280*420*106 | 239/850 | 850*1200*200 |
| 23060 | 300*460*118 | | |
