C3 Clearance Brass Cage Bearing / Bearing Spherical Roller FAG 22324-E1A-M-C3

Brand Name : FAG

Model Number : 22324-E1A-M-C3

Certification : ISO

Place of Origin : Germany

MOQ : 1 pcs

Price : negotiation

Payment Terms : T/T or western Union or PayPal

Supply Ability : 3,000pcs per month

Delivery Time : 3 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with wooden case for outer packing

Product Name : 22324-E1A-M-C3

ID : 120 mm

OD : 260 mm

Height : 86mm

Cage : Brass cage

Clerance : C3

Weight : 23 kgs

Material : Chrome steel

Contact Now

C3 Clearance Brass Cage FAG 22324-E1A-M-C3 Spherical Roller Bearing

1. Specification:

Specification of Bearing
Bearing type	Spherical Roller Bearing
Brand type	FAG and so on
Precision Rating	Germany
Vibration	Z1V1,Z2V2,Z3V3
Durability	Long
Material	Chrome steel
Certificate	ISO9001:2008
Main market abroad	South America,USA,European,Southeast Asia,Middle East
Packaging Details	1. inner: polyester bag outer:paper carton 2. industrial standard packing 3. Poly bag+box+packing 4. 4. as your order
Delivery Time	Within 3-5 days after receiving your subscription
Payment Terms	T/T,Western Union,Paypal

2. Feature:

(1) C3 Clearance

(2) Brass cage

(3) Long use life design

(4) Reinforced type

(5) Competitive price

3. Brass type:

CA: Brass cage

CC: Steel cage

MB: Brass cage

E: Reinforced steel cage

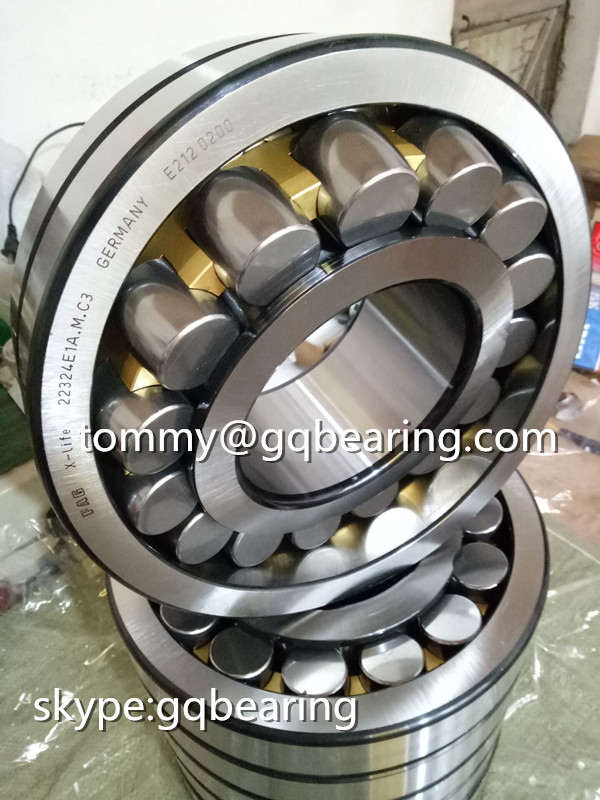

4. Bearing Picture:

C3 Clearance Brass Cage Bearing / Bearing Spherical Roller FAG 22324-E1A-M-C3

5. We aslo supply following spherical roller bearing

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Mass	Designation
			dynamic	static	Fatigue load limit	Reference speed	Limiting speed
d	D	B	C	C0	Pu
mm			kN		kN	r/min		kg	SKF
180	250	52	519	830	76.5	2600	2800	7.9	23936 CC/W33
180	250	52	519	830	76.5	2600	2800	7.65	23936 CCK/W33
180	280	74	883	1250	114	2000	2600	17	23036 CC/W33
180	280	74	884	1270	114	-	560	16.1	23036-2CS5/VT143
180	280	74	883	1250	114	2000	2600	16.5	23036 CCK/W33
180	280	74	884	1270	114	-	560	16.1	23036-2CS5K/VT143
180	280	100	1134	1730	156	1300	2200	22.5	24036 CCK30/W33
180	280	100	1136	1730	156	-	380	23	24036-2CS5/VT143
180	280	100	1134	1730	156	1300	2200	23	24036 CC/W33
180	300	96	1263	1760	160	1700	2200	28	23136 CC/W33
180	300	96	1263	1760	160	1700	2200	27	23136 CCK/W33
180	300	96	1264	1800	160	-	430	26.1	23136-2CS5/VT143
180	300	96	1264	1800	160	-	430	26.1	23136-2CS5K/VT143
180	300	118	1449	2160	196	1100	1600	34	24136 CCK30/W33
180	300	118	1452	2160	196	-	360	34.5	24136-2CS5/VT143
180	300	118	1449	2160	196	1100	1600	34.5	24136 CC/W33
180	320	86	1239	1560	140	-	530	29.5	22236-2CS5/VT143
180	320	86	1237	1560	140	1800	2600	29.5	22236 CC/W33
180	320	86	1239	1560	140	-	530	29	22236-2CS5K/VT143
180	320	86	1237	1560	140	1800	2600	29	22236 CCK/W33
180	320	112	1557	2120	186	1300	1900	38.5	23236 CCK/W33
180	320	112	1557	2120	186	1300	1900	39.5	23236 CC/W33
180	380	126	2077	2450	193	1300	1700	71.5	22336 CC/W33
180	380	126	2077	2450	193	1300	1700	71.5	22336 CCJA/W33VA405
180	380	126	2077	2450	193	1300	1700	71.5	22336 CCJA/W33VA406
180	380	126	2077	2450	193	1300	1700	70	22336 CCK/W33
180	380	126	2077	2450	193	1300	1700	70	22336 CCKJA/W33VA405

If you want to buy this bearing,just send us enquiry or send email to: tommy@gqbearing.com
